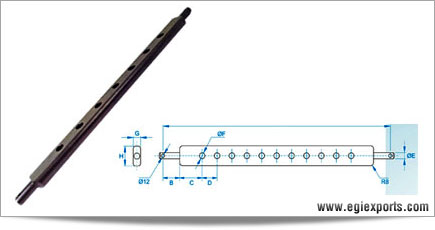

Draw Bas (63x30)

CODE

H

G

Holes

A

B

C

D

E

b

EGIDB08

63

30

7

1003

60

181

80

28.5

25.4

EGIDB09

63

30

7

683

49

113

54

22

20

EGIDB10

63

30

9

758

49

114

54

22

20

EGIDB11

63

30

9

781

60

114

54

28.5

20

EGIDB12

63

30

7

962

60

181

80

28.5

28

EGIDB13

63

30

9

796

57.5

125

55

21.6

22.2

EGIDB14

63

30

9

800

70

113.3

54

28

22

EGIDB15

63

30

11

766

60

60

54

28

20

EGIDB16

63

30

11

945

60

114

60

28

22

EGIDB17

63

30

9

800

58

118

22

22

22

EGIDB18

63

30

9

800

126

51

70

28

22

EGIDB19

63

30

11

765

52

60

54

22

22

EGIDB20

63

30

11

781

60

60

54

28

22

EGIDB21

63

30

9

770

55

110

55

22

20

EGIDB22

63

30

9

770

55

110

55

28

20

EGIDB23

63

30

3

440

55

110

55

22

20

EGIDB24

63

30

11

766

53

60

54

22

20

EGIDB25

63

30

11

780

60

60

54

28

20

EGIDB26

63

30

3

440

57

110

54

22

19

EGIDB27

63

30

9

800

70

114

54

28

22

EGIDB28

63

30

11

810

60

75

54

28.5

20

EGIDB29

63

30

9

620

50

71

47.5

22

26

Draw Bar ( 63x25 )

CODE

H

G

Holes

A

B

C

D

E

F

EGIDB00

63

25

7

505

51

66.5

45

22

20

EGIDB01

63

25

7

770

50

105

76.66

22

22

EGIDB02

63

25

7

610

51

84.5

57

22

19

EGIDB03

63

25

7

610

51

84.5

57

22

22

EGIDB04

63

25

11

775

57

75

51

22

19

EGIDB05

63

25

11

775

57

75

51

22

22

EGIDB06

63

25

9

775

57

114

54

22

19

EGIDB07

63

25

11

766

53

60

54

22

20

Draw Bar ( 80x40 )

CODE

H

G

Holes

A

B

C

D

E

F

EGIDB30

80

40

7

930

55

110

100

28

28

EGIDB31

80

40

7

770

56

16.5

16.6

28

26.5

EGIDB32

80

40

7

861

60.3

122

83

28

26.5

EGIDB33

80

40

7

1085

60

151

110

36

32

EGIDB34

80

40

7

940

80

121

83

28.4

26

Draw Bar ( 70x30 )

CODE

H

G

Holes

A

B

C

D

E

F

EGIDB35

70

30

1

770

54.8

329

N.A

27.8

26

EGIDB36

70

30

3

772

54.8

163

165.2

27.8

26

EGIDB37

70

30

3

674

55

139.5

140

28

22.7

EGIDB38

70

30

3

900

55

19735

197.5

28.4

28.5

EGIDB39

70

30

3

960

55

212.5

212.5

28.4

28.5

EGIDB40

70

30

11

960

55

155

155

28

26

Draw Bar ( 76x32 )

CODE

H

G

Holes

A

B

C

D

E

F

EGIDB41

76

32

11

780

60

75

51

28

19

EGIDB42

76

32

11

780

60

75

51

28

22

EGIDB43

76

32

13

940

60

76

55.5

28

19

EGIDB44

76

32

13

940

60

76

55.5

28

22

EGIDB45

76

32

7

880

50

100

96

28

28

EGIDB46

76

32

9

920

50

90

80

28

33

EGIDB47

76

32

7

930

55

85

108.5

28

26

EGIDB48

76

32

9

945

60

92.5

80

28

33

EGIDB49

76

32

11

933

55

157.5

50.8

28

22

EGIDB50

76

32

7

960

59

103.5

71.5

28

26.5

EGIDB51

76

32

7

861

60.5

123.5

82.2

28.4

27

EGIDB52

76

32

13

933

560

76.4

55

28.6

19

EGIDB53

76

32

7

890

55

124

88.6

28

28

EGIDB54

76

32

3

772

55.5

165

166

22.6

26.6

EGIDB55

76

32

7

940

60

148

86

28.4

28.5

EGIDB56

76

32

7

910

50

85

110

28

26

EGIDB57

76

32

9

930

60

86

80

28

28

EGIDB58

76

32

9

945

60

92.5

80

28

33

EGIDB59

76

32

11

960

62

143

55

28

28

EGIDB60

76

32

7

981

60

151

86

28.4

28.5

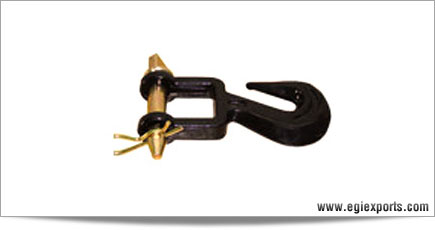

Tractor Drawbar Grab Hook

We provide a wide range of tractor drawbar grab hook, which is available for all types of tractors. The drawbars offered by us are widely known for their precise design, fine finish, tensile strength and durability. The various dimensions and thickness to be used in tractor drawbars are 1 5/8in. thick and 5/16in. to 1/2in. chain 3/4in. pin diameter. These drawbars have a load capacity of 9,000 lbs.
