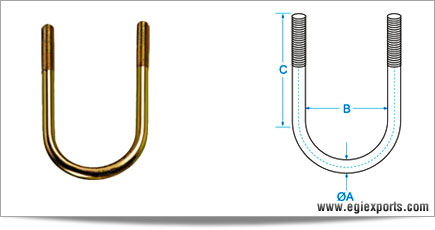

U-bolts

CODE

DIA.ØA

DIM.B

DIM.C

EGIUB – 01

7/16"

2"

6"

EGIUB – 02

7/16"

2-7/8"

7-3/4"

EGIUB – 03

7/16"

3"

7-1/2"

EGIUB – 04

1/2"

2-1/2"

8-1/4"

EGIUB – 05

1/2"

2-7/8"

7"

EGIUB – 06

1/2"

3"

8"

EGIUB – 07

9/16"

3"

8-1/4"

EGIUB – 08

9/16"

3-1/4"

8"

EGIUB – 09

9/16"

3-3/8"

12"

EGIUB – 10

5/8"

3"

8-1/2"

EGIUB – 11

5/8"

3-1/4"

8-1/4"

EGIUB – 12

5/8"

3-1/4"

12"

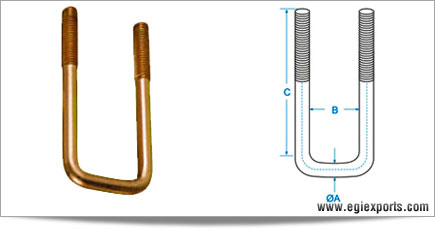

U-bolts

CODE

DIA.ØA

DIM.B

DIM.C

EGIUB – 21

3/8"

2-1/2"

2-1/2"

EGIUB – 22

3/8"

7"

7-1/2"

EGIUB – 23

1/2"

3"

4"

EGIUB – 24

5/8"

4"

4"

EGIUB – 25

5/8"

4"

5-1/2"

EGIUB – 26

5/8"

4"

7-1/2"

EGIUB – 27

5/8"

5"

8-1/2"

EGIUB – 28

5/8"

6"

8"

EGIUB – 29

5/8"

7"

5"

EGIUB – 30

5/8"

7"

7"

EGIUB – 31

5/8"

7"

8-1/2"

EGIUB – 32

3/4"

5"

7"

EGIUB – 33

3/4"

7"

8-1/2"

EGIUB – 34

3/4"

7"

7"

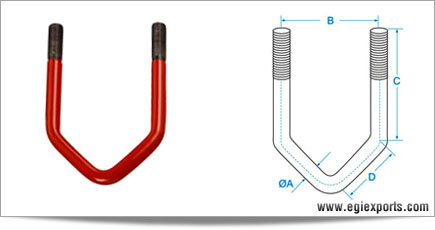

U-bolts

CODE

DIA.ØA mm

DIM.B mm

DIM.C mm

DIM.D mm

EGIUB – 51

11

70

37

42

EGIUB – 52

12.8

82

39

49

EGIUB – 53

11

90

30

56

EGIUB – 54

15

96

52

60.5

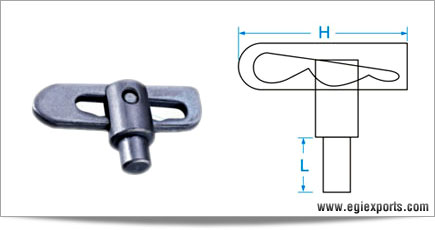

Drop Lock Pin Weld On Type

CODE

DIA. L mm

DIM. H mm

EGIDP – 01

13

70

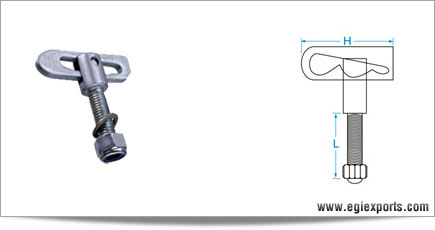

Drop Lock Pin With Long Screw

CODE

DIA. L mm

DIM. H mm

Thread

EGIDP – 02

35

70

1/2” UNF

EGIDP – 03

76

70

1/2” UNF

EGIDP – 04

38

50

MB x 1.25

EGIDP – 05

20

50

MB x 1.25

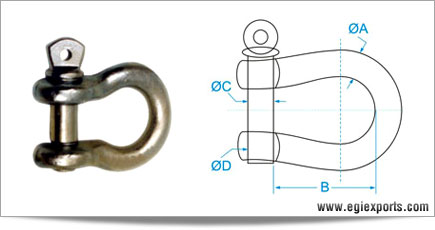

Clevises (Screw Pin)

CODE

Body Dia. ØA mm

Usable Length B mm

Pin Dia. ØC mm

Thread Dia. ØD mm

Weight lbs.

EGICS – 01

6.35

25.87

7.93

5/16” UNC

0.14

EGICS – 02

7.93

31.75

9.52

3/8” UNC

0.22

EGICS – 03

9.52

36.51

11.11

7/16” UNC

0.31

EGICS – 04

11.11

42.85

12.7

1/2” UNC

0.53

EGICS – 05

12.7

49.21

15.87

5/8” UNC

0.75

EGICS – 06

15.87

63.5

19.05

3/4” UNC

1.1

EGICS – 07

19.05

76.2

22.22

7/8” UNC

2.75

EGICS – 08

22.22

82.55

25.4

1” UNC

3.58

EGICS – 09

25.4

95

28.57

1-1/8”UNC

5.4

EGICS – 10

28.57

7107.95

31.75

1-1/4” UNC

7

EGICS – 11

13.75

114.6

34.92

1-3/8” UNC

9.5

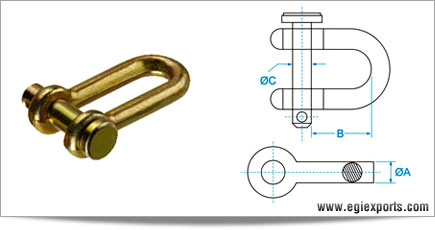

Clevises (Utility)

CODE

Body Dia. ØA mm

Usable Length B mm

Pin Dia. ØC mm

Weight lbs.

EGICU – 01

6.35

22.22

7.93

0.1

EGICU – 02

7.93

25.4

9.52

0.17

EGICU – 03

9.52

31.75

11.11

0.28

EGICU – 04

11.11

38.05

12.7

0.42

EGICU – 05

12.7

42.96

15.87

0.66

EGICU – 06

15.87

50.8

19.05

1.2
